ROTARY BATCH MIXERS

Blend dry bulk solids with or without liquid additions quickly, uniformly and gently, with total discharge and no cross-contamination

The MUNSON® Rotary Batch Mixer delivers uniform particle distribution, uniform liquid additions, cycle times under 3 minutes, gentle product handling, the lowest energy consumption, and complete discharge with no segregation. It also cleans and sanitizes quickly and easily preventing cross-contamination.

Munson's unique, four-way mixing action gently folds, tumbles, cuts and turns the material, producing a thorough blend in only 1 to 3 minutes, while imparting minimal energy and intensity to the product.

The same blending action prevents segregation regardless of particle sizes, shapes or bulk densities, and provides an ideal fluid bed for liquid additions.

Unlike stationary mixers with agitators, MUNSON Rotary Batch Mixers produce homogeneous blends with no shear, discharge completely with no stratification and have no internal shafts or shaft seals to contact material.

Internal mixing flights direct material towards and through a stationary discharge gate which, together with multiple clean-out doors and unrestricted access to all internal surfaces, allows thorough cleaning and sanitizing in minutes.

Capacities range from 5 to 600 cu ft (142 liters to 17 m3), with equal mixing efficiency at 100% of rated capacity to as low as 15% (33% with liquid additions), providing unsurpassed flexibility.

This superior combination of attributes makes the MUNSON Rotary Batch Mixer ideal for a broad range of applications, from pharmaceutical, nutraceutical and food applications requiring absolute cleanliness, to minerals, glass and concrete blending requiring extraordinary durability.



  • 1 to 3 minute cycle times
  • Uniform dry blends and liquid additions
  • Gentle mixing
  • Total discharge with no segregation
  • Ultra-fast cleaning and sanitizing
  • Full interior access
  • Low energy costs
  • Stationary inlet and outlet
  • Wide range of flexible capacities
  • Dust-tight operation
  • Long life with minimal maintenance


MUNSON also offers small production lab/pilot Mini-Mixers with capacities from 0.25 to 15 cu ft (7 to 425 liters), and Rotary Continuous Mixers with capacities from 25 to 5000 cu ft/h (708 liters to 142 m3/h).





AVAILABLE USED

ROTARY BACH MIXERS

Model 700-TH-20-SS (refurbished)
BATCH VOLUME: 20 cu ft (0.57 m3)
TOTAL VOLUME: 48 cu ft (1.36 m3)
#304 stainless contact surfaces, sprayline and leg extensions, 230v control panel



Buybacks Welcomed
on Used Munson
Rotary Batch Mixers

1-315-797-0090
sales@munsonmachinery.com



90 cu ft abrasion-resistant Rotary Batch Mixer

This 90 cu ft (2.5 m3) abrasion-resistant Rotary Batch Mixer blends dry cement mixes in less than three minutes, gently and efficiently with total uniformity.

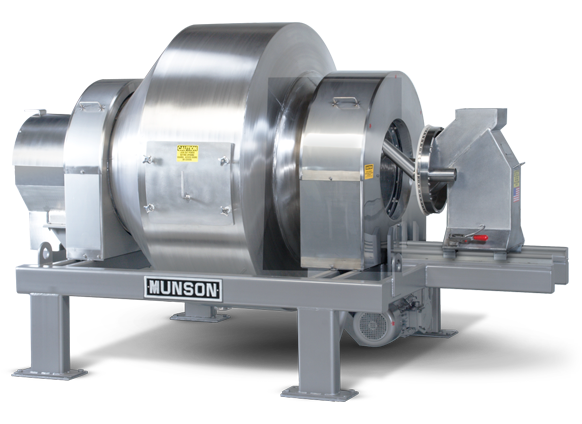

Rotary Batch Mixer

Rotary Batch Mixers are available in useable capacities to 600 cu ft (17 m3).
Shown is a 35 cu ft (1 m3) sanitary stainless steel model with retractable inlet, for blending of spices.
